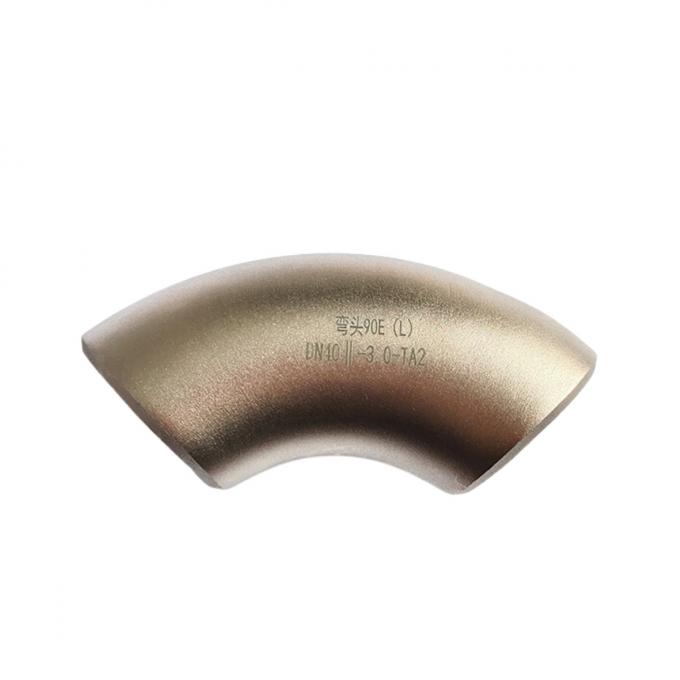

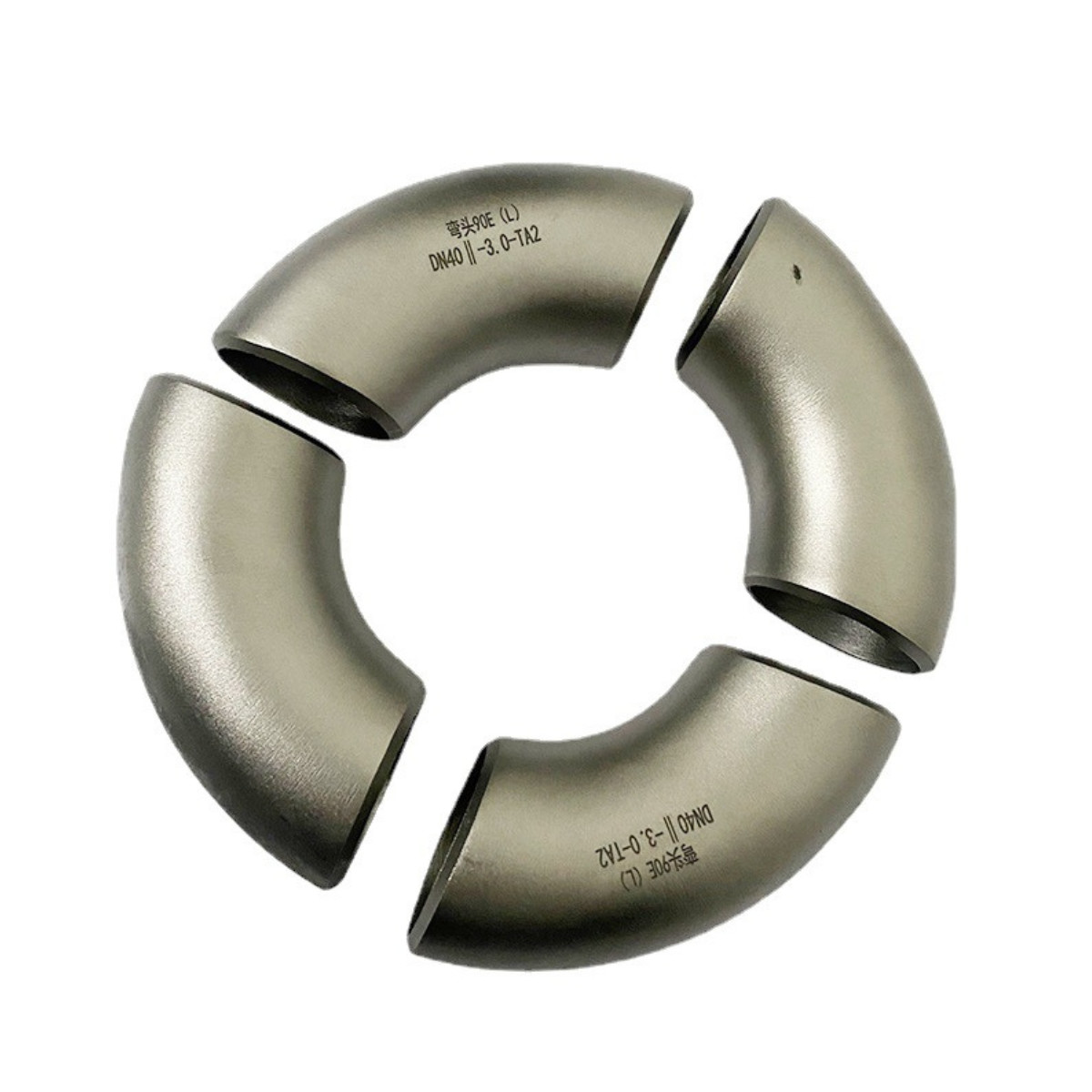

45° 60° Titanium Tube Fittings Titanium Pipe Fitting Titanium Alloy Elbow In Petrochemical
| Place of Origin: | China |
| Brand Name: | BaseTi |
| Certification: | ISO9001:2015 |
| Model Number: | PF007 |
| Minimum Order Quantity: | NO MOQ LIMITATION. |
| Price: | CONTACT US |
| Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
| Delivery Time: | 10~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 tons/month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | BaseTi |
|---|---|---|---|
| Certification | ISO9001:2015 | Model Number | PF007 |
| Angle: | 45°, 90° | Production Standards: | ASME B16.9 (U.S.), EN 10253 (EU) |
| Wall Thickness: | Sch 10, Sch 40, Sch 80 | Grade: | Grade 2, Grade 5 (U.S.), Ti-6Al-4V, Ti-6Al-7Nb (EU) |
| Connection Type: | Welded, Threaded, Socket Weld | Operating Temperature: | -60°C To 300°C |
| Operating Pressure:: | Up To 3000 PSI | Surface Process: | Pickling/Polished |
| High Light: | 45 degree titanium tube fittings,60 degree titanium tube fittings,Titanium Pipe Fitting In Petrochemical |
||
Product Description
45° 60° Titanium Alloy Elbow Titanium Pipe Fittings Low Density High Strength Excellent Heat Resistance In Petrochemical
*If you have any requirements for customized titanium elbow, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium pipe fittings specifications & parameters |
|
|
Product name |
Titanium seamless elbow |
|
Application field |
Petrochemical |
|
Available size |
1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size |
|
Material Grade |
Grade 2, Grade 5 (U.S.), Ti-6Al-4V, Ti-6Al-7Nb (EU) |
|
Wall Thickness |
Sch 10, Sch 40, Sch 80 |
|
Angle |
45°, 90°, 180° |
|
Connection Type |
Welded, Threaded, Quick-fit |
|
Surface Finish |
Pickling, Passivation |
|
Operating Temperature |
-60°C to 300°C |
|
Operating Pressure |
Up to 3000 PSI |
The petrochemical industry is a multifaceted domain with various sub-sectors, each requiring specialized materials for optimal performance. Among these, titanium elbow pipe fittings have emerged as a game-changer, offering unparalleled advantages in terms of strength, heat resistance, and corrosion resistance. BaseTi, a leading titanium manufacturer and supplier, provides industry-compliant titanium elbow fittings that cater to these specialized needs.
- Key Properties of Titanium Elbow Fittings
Low Density
Titanium's low density makes it ideal for applications where weight is a critical factor. For instance, in offshore drilling platforms, the reduced weight can significantly lower the overall structural load.
High Strength
Titanium's high tensile strength is particularly beneficial in high-pressure fluid systems commonly found in cracking and reforming units.
Excellent Heat Resistance
In processes like steam methane reforming, where temperatures can soar, titanium's heat resistance ensures longevity and reliability.
Superior Corrosion Resistance
In corrosive environments like those involving sour gas or acidic fluids, titanium offers unmatched corrosion resistance.
- Applications in Petrochemical Sub-Sectors
Oil Refining
Material: Grade 5 (Ti-6Al-4V)
Case Study: A refinery in the Gulf region reported a 40% reduction in maintenance downtime after switching to BaseTi's Grade 5 titanium elbows.
Gas Processing
Material: Grade 2
Case Study: A gas processing plant in North America experienced zero corrosion-related failures over a three-year period after adopting BaseTi's Grade 2 titanium elbows.
Petrochemical Manufacturing
Material: Ti-6Al-4V (EU)
Case Study: A European petrochemical facility using BaseTi's Ti-6Al-4V elbows reported a 25% increase in operational efficiency.
Fertilizer Production
Material: Ti-6Al-7Nb (EU)
Case Study: A fertilizer plant in Asia reported extended equipment lifespan and reduced maintenance costs after switching to Ti-6Al-7Nb elbows from BaseTi.
- Why Choose BaseTi?
BaseTi specializes in providing high-quality titanium elbow fittings that meet both U.S. and European production standards. Our products are engineered to offer superior performance across various petrochemical sub-sectors.
Titanium elbow pipe fittings from BaseTi offer a range of benefits that make them an ideal choice for specialized applications in the petrochemical industry. With material grades like Grade 2, Grade 5, Ti-6Al-4V, and Ti-6Al-7Nb, we ensure unparalleled quality and performance.
|
Material Grade |
Application Field |
Specific Products |
Production Standards (U.S.) |
Production Standards (EU) |
|---|---|---|---|---|
|
Grade 2 |
Petrochemical, Desalination Plants, Marine |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
|
Grade 5 (Ti-6Al-4V) |
Aerospace, Medical Implants, High-Stress Environments |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
|
Ti-6Al-4V (EU) |
European Aerospace, Automotive |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
|
Ti-6Al-7Nb (EU) |
European Orthopedic Implants, Medical Devices |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
| Material Grade | C (%) | N (%) | O (%) |
Al (%) |
V (%) | Nb (%) |
|---|---|---|---|---|---|---|
| Grade 2 | 0.08 | 0.03 | 0.25 | - | - | - |
| Grade 5 (U.S.) | 0.08 | 0.05 | 0.20 | 5.5-6.8 | 3.5-4.5 | - |
| Ti-6Al-4V (EU) | 0.08 | 0.05 | 0.20 | 5.5-6.8 | 3.5-4.5 | - |
| Ti-6Al-7Nb (EU) | 0.08 | 0.05 | 0.20 | 5.5-6.8 | - | 6.5-7.5 |
| Material Grade | Density (g/cm³) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|
| Grade 2 | 4.51 | 345 | 275 | 20 |
150 |
| Grade 5 (U.S.) | 4.43 | 950 | 880 | 14 | 334 |
| Ti-6Al-4V (EU) | 4.43 | 950 | 880 | 14 | 334 |
| Ti-6Al-7Nb (EU) | 4.52 | 860 | 830 | 15 | 310 |
